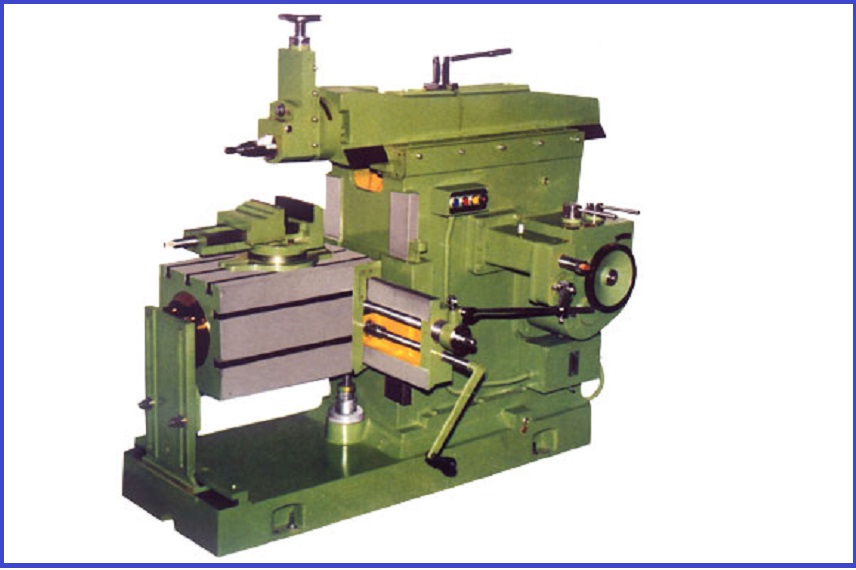

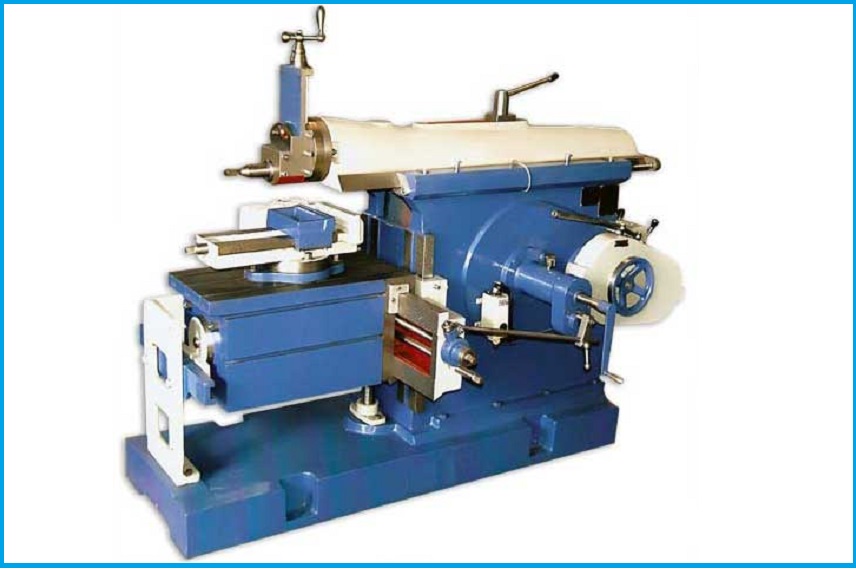

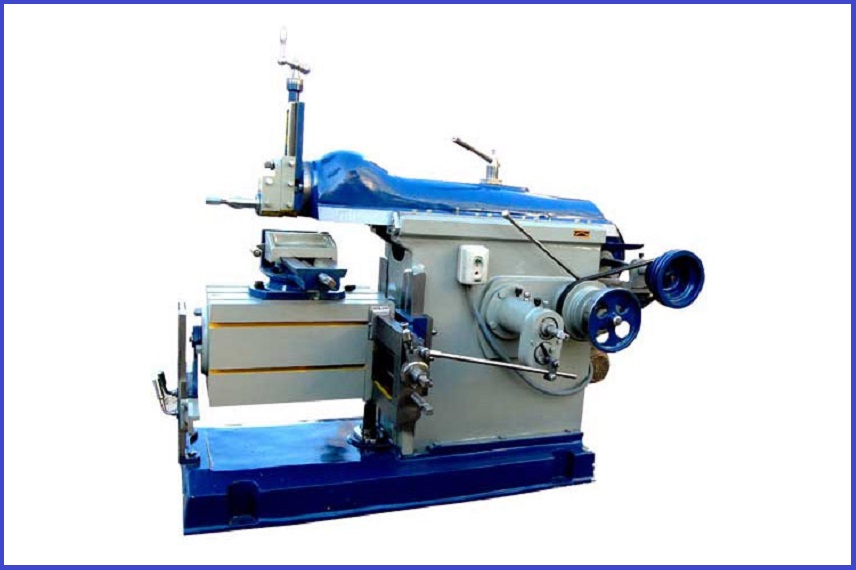

Shaping Machine
The PARAS Shaping Machine is a plain but valuable machine. The purpose behind using this machine is to remove material such as steel or aluminum, to produce a flat surface. Moreover, it is also used to manufacture gears such as rack and pinion systems and other complex shapes. It can cut curves, angles and many other shapes. It is a popular machine in a workshop as its movement is very straightforward besides producing much useful work. The size in which it is available are:- 12", 18", 24", 30", 36".
Breaf Technical Specification
| Size in Inches | 12" | 18" | 24" | 30" | 36" | 40" | 42" |
| Maximum Length of Stroke in inches | 13 | 20 | 26 | 32 | 38 | 42 | 44 |
| Length*Width of Table in inches | 12*9 | 18*12 | 24*15 | 30*16 | 36*16 | 40*16.5 | 42*16.5 |
| Vertical Travel of Table in inches | 10 | 10 | 14 | 14 | 16 | 18 | 20 |
| Horizontal Travel of Table in Inches | 13 | 19 | 25 | 31 | 37 | 41 | 43 |
| Travel of Tool Slide in Inches | 4 | 4 | 5 | 6 | 7 | 7 | 7 |
| Power Recommended (H.P.) | 1 | 1 | 2 | 3 | 3 | 5 | 5 |
Technical Specification
| Model | PA12 | PA 18 | PA 24 | PA 30 | PA 36 | PA 42 |
| Length of ram stroke (mm) | 12" / 305 | 18" / 457 | 24" / 610 | 30" / 762 | 36" / 915 | 42" / 1070 |
| Length x Width of ram bearing (mm) | 724 x 203 | 700 x 270 | 867 x300 | 1020 x 330 | 1130 x 330 | 1600 x 330 |
| Distance from table to ram Max / Min (mm) | 257 /41 | 260 / 75 | 450 / 76 | 510 / 75 | 565 / 102 | 600 / 102 |
| Working surface of table (mm) | 305 / 228 | 457 / 305 | 610 / 370 | 762 /390 | 915 / 457 | 1078 / 533 |
| Horizontal Table Travel Max (mm) | 330 | 488 | 635 | 787 | 940 | 1075 |
| Vertical Table Travel Max (mm) | 140 | 330 | 380 | 450 | 525 | 585 |
| Angular movement of table (degrees) | 60 L / 60 R | 60 L / 60 R | 60 L / 60 R | 60 L / 60 R | 60 L / 60 R | 60 L / 60 R |
| Vertical Travel of Tool Slide Max (mm) | 140 | 152 | 190 | 225 | 255 | 300 |
| Swivel of tool head max (degrees) | 60 L / 60 R | 60 L / 60 R | 60 L / 60 R | 60 L / 60 R | 60 L / 60 R | 60 L / 60 R |
| Base length x weidth (mm) | 940 x 483 | 1346 x 502 | 1676 x 610 | 1829 x 660 | 1960 x 660 | 2286 x 762 |
| Dlameter of cluch Pulley (mm) | 235 | 311 | 311 | 311 | 380 | 390 |
| Number of Ram speed | 3 | 4 | 4 | 4 | 4 | 4 |
| Ram speed Stroke / minute | 30, 60, 90 | 16, 31, 64, 96 | 14, 20, 42, 62 | 8, 16, 32, 48 | 10, 20, 30, 50 | 8, 16, 32, 48 |
| Motor Pulley Diameter (mm) | 51 | 70 | 70 | 76 | 88 | 88 |
| Motor (HP/RRM) | 1 / 1440 | 2 / 1440 | 3 / 1440 | 5 / 960 | 7.5 / 960 | 10 / 960 |
| "V" Belt Section | B-55 | B-55 | B-55 | B-58 | B-70 | B-75 |
| Approxymate net / Gross weight (killos) | 700 /850 | 1200 / 1500 | 1850 / 2100 | 2300 / 2600 | 3500 / 3900 | 4000 / 4500 |
| Overall size of the machine - L x W x H (mm) | 1.25 x 0.8 x 1.4 | 1.6 x 1.0 x 1.4 | 2.0 x 1.1 x 1.6 | 2.2 x 1.25 x 1.6 | 2.5 x 1.4 - 1.7 | - |
